715
Mica window-alpha-beta-gamma detector

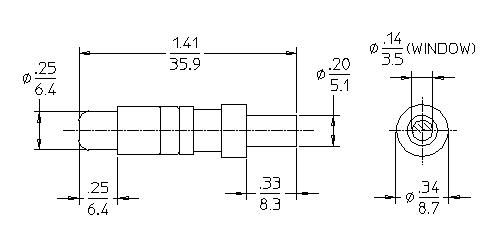

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
1.41/35.9 |
| MAXIMUM DIAMETER (INCH/MM) |
0.34/8.7 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
0.33/8.33 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.14/3.5 |
| CONNECTOR |
Grid Cap |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
WINDOW SPECIFICATIONS
| MATERIAL |
Mica |
| EFFECTIVE DIAMETER (INCH/MM) |
0.14/3.5 |
| AREAL DENSITY (MG/CM²) |
1.8 - 2.2 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
550 |
| RECOMMENDED ANODE RESISTOR (MEG OHM) |
4.7 |
| OPERATING VOLTAGE RANGE (VOLTS) |
450 - 650 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
20 |
| MINIMUM DEAD TIME (MICRO SEC) |
30 |

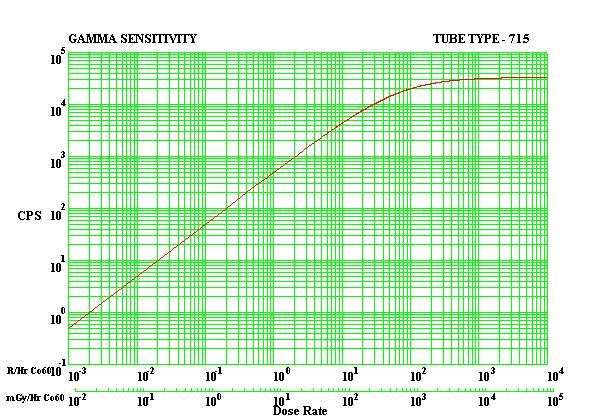

| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
0.5 |
| TUBE CAPACITANCE (PF) |
3 |
| WEIGHT (GRAMS) |
6 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
3 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
400 |
