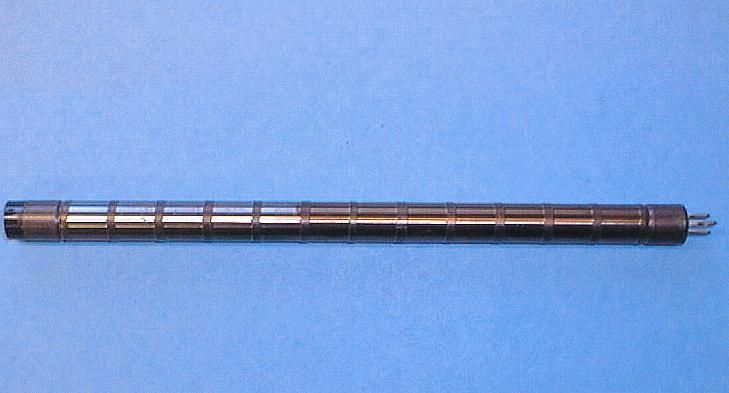

71916
High temperature waterproof
General Specifications

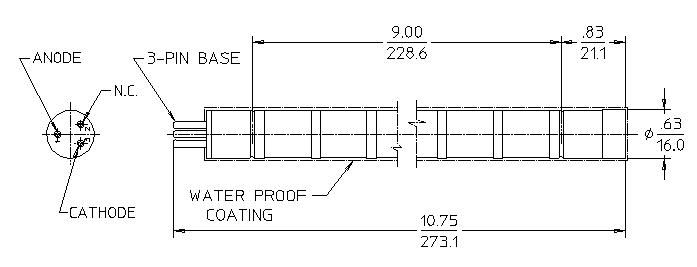

| MAXIMUM LENGTH (INCH/MM) |
10.75/273.1 |
| MAXIMUM DIAMETER (INCH/MM) |
0.63/16.0 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
9.0/228.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.61/15.5 |
| CONNECTOR |
Jedec A3-1 |
| OPERATING TEMPERATURE RANGE °C |
-40 to +100 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
900 |

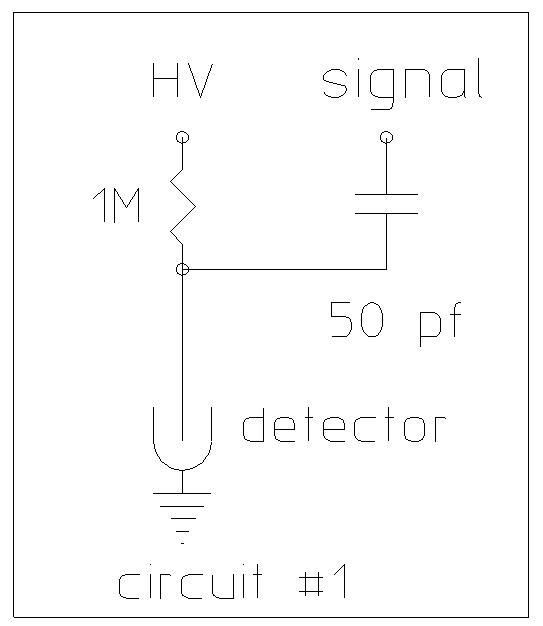

| RECOMMENDED ANODE RESISTOR (MEG OHM) |
1 |
| OPERATING VOLTAGE RANGE (VOLTS) |
850-1000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
10 |
| MINIMUM DEAD TIME (MICRO SEC) |
100 |

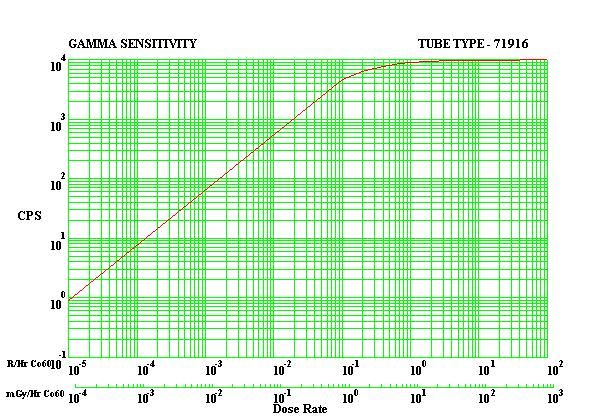

| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
90 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
26 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
75 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
800 |
Wall Specifications
| THICKNESS (INCH/MM) |
0.003/0.076 |
| AREAL DENSITY (MG/CM²) |
40-60 |
