50343
Gamma ionization chamber
General Specifications

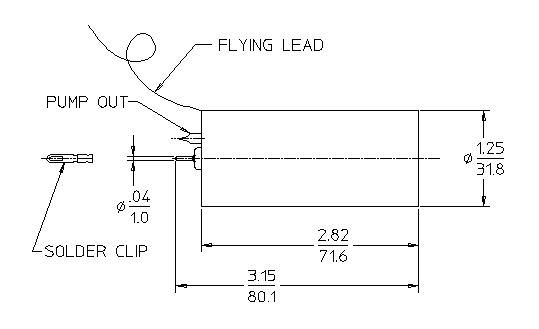

| MAXIMUM LENGTH (INCH/MM) |
3.15/80.01 |
| MAXIMUM DIAMETER (INCH/MM) |
1.25/31.75 |
| EFFECTIVE LENGTH (INCH/MM) |
2.82/71.63 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| FILL GAS |
Ar 75% - N2 25% |
| FILL PRESSURE (TORR) |
700 |
| EFFECTIVE VOLUME (CM³) |
42.0 |
| OUTER CASING MATERIAL |
N/A |
| ANODE CONNECTOR |
Pin |
| CATHODE CONNECTOR |
N/A |
| GUARD CONNECTOR |
N/A |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
400 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
500 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
1.0E-11 |
| RESISTANCE - SIGNAL ELECTRODE TO CATHODE (OHMS) |
>1.0E12 |
| RESISTANCE - GUARD ELECTRODE TO CATHODE (OHMS) |
>1.0E12 |
