50354
High pressure gamma ionization chamber

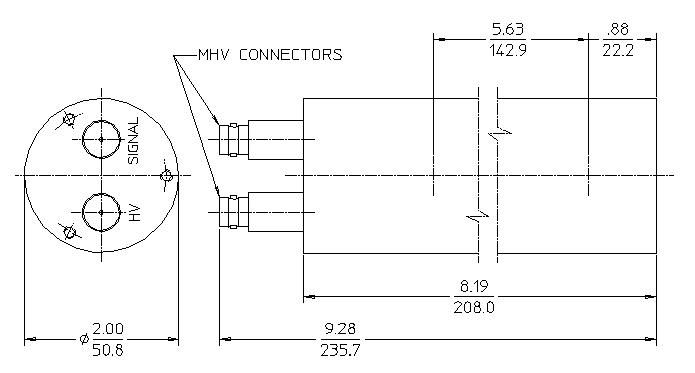

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
9.28/235.7 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
5.63/143.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| CONNECTOR |
Ceramic MHV |
| FILL GAS |
Xenon |
| FILL PRESSURE (TORR) |
7600 |
| EFFECTIVE VOLUME (CM³) |
160.0 |
| OUTER CASING MATERIAL |
Steel |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| MAXIMUM OPERATING TEMPERATURE °C |
225 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
6.5E-10 |
| RESISTANCE - HV ELECTRODE TO SHELL (OHMS) |
>1.0E9 |
| RESISTANCE - SIGNAL ELECTRODE TO SHELL (OHMS) |
>1.0E13 |
