50440
High pressure gamma ionization chamber

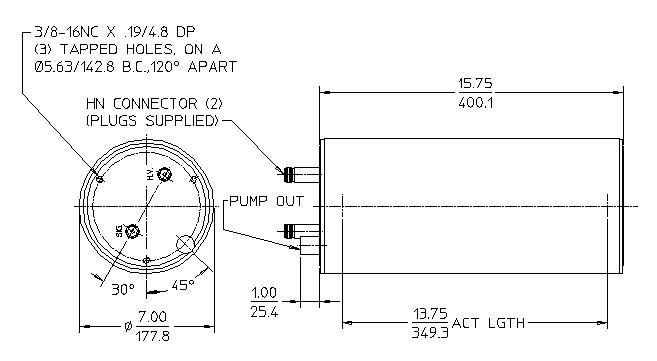

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
17.38/441.5 |
| MAXIMUM DIAMETER (INCH/MM) |
7.0/177.8 |
| EFFECTIVE LENGTH (INCH/MM) |
13.75/349.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Argon + Nitrogen |
| FILL PRESSURE (TORR) |
9272 + 5928 |
| EFFECTIVE VOLUME (CM³) |
5200.0 |
| OUTER CASING MATERIAL |
Stainless Steel |
| ANODE CONNECTOR |
HN |
| CATHODE CONNECTOR |
HN |
| GUARD CONNECTOR |
N/A |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
350 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
6.5E-9 |
| RESISTANCE - SIGNAL ELECTRODE TO CATHODE (OHMS) |
>1.0E12 |
| INTERNAL TEST SOURCE CURRENT (AMPS) |
1 - 5E-11 |
| RESISTANCE - HV ELECTRODE TO CATHODE (OHMS) |
>1.0E9 |
