50470
High pressure gamma ionization chamber

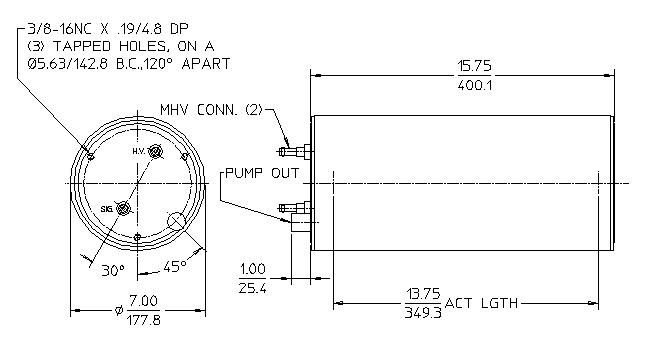

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
17.63/447.6 |
| MAXIMUM DIAMETER (INCH/MM) |
7.0/177.8 |
| EFFECTIVE LENGTH (INCH/MM) |
13.75/349.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Argon + Nitrogen |
| FILL PRESSURE (TORR) |
8700 + 2533 |
| EFFECTIVE VOLUME (CM³) |
5200 |
| OUTER CASING MATERIAL |
Steel |
| ANODE CONNECTOR |
HN |
| CATHODE CONNECTOR |
HN |
| GUARD CONNECTOR |
HN |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
350 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| RESISTANCE - HV ELECTRODE TO SHELL (OHMS) |
>1.0E12 |
| RESISTANCE - SIGNAL ELECTRODE TO SHELL (OHMS) |
>1.0E13 |
| GAMMA SENSITIVITY (CS137) |
4.5E-9 |
