520148

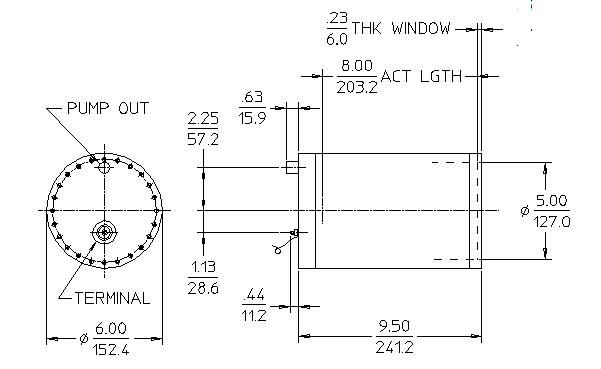

End window high pressure gamma ionization chamber
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
10.13/257.3 |
| MAXIMUM DIAMETER (INCH/MM) |
6.0/152.4 |
| EFFECTIVE LENGTH (INCH/MM) |
8.0/203.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Xenon |
| FILL PRESSURE (TORR) |
11400 |
| ANODE CONNECTOR |
Threaded Pin |
| CATHODE CONNECTOR |
Solder Pin |
| GUARD CONNECTOR |
Solder Pin |
| STORAGE TEMPERATURE RANGE (°C) |
-40 to +100 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Aluminum |
| THICKNESS (INCH/MM) |
0.23/6.0 |
| EFFECTIVE DIAMETER (INCH/MM) |
5.0/127.0 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
3.8E-8 |
| RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E12 |
| RESISTANCE - CATHODE TO GUARD (OHMS) |
>1.0E11 |
