52016

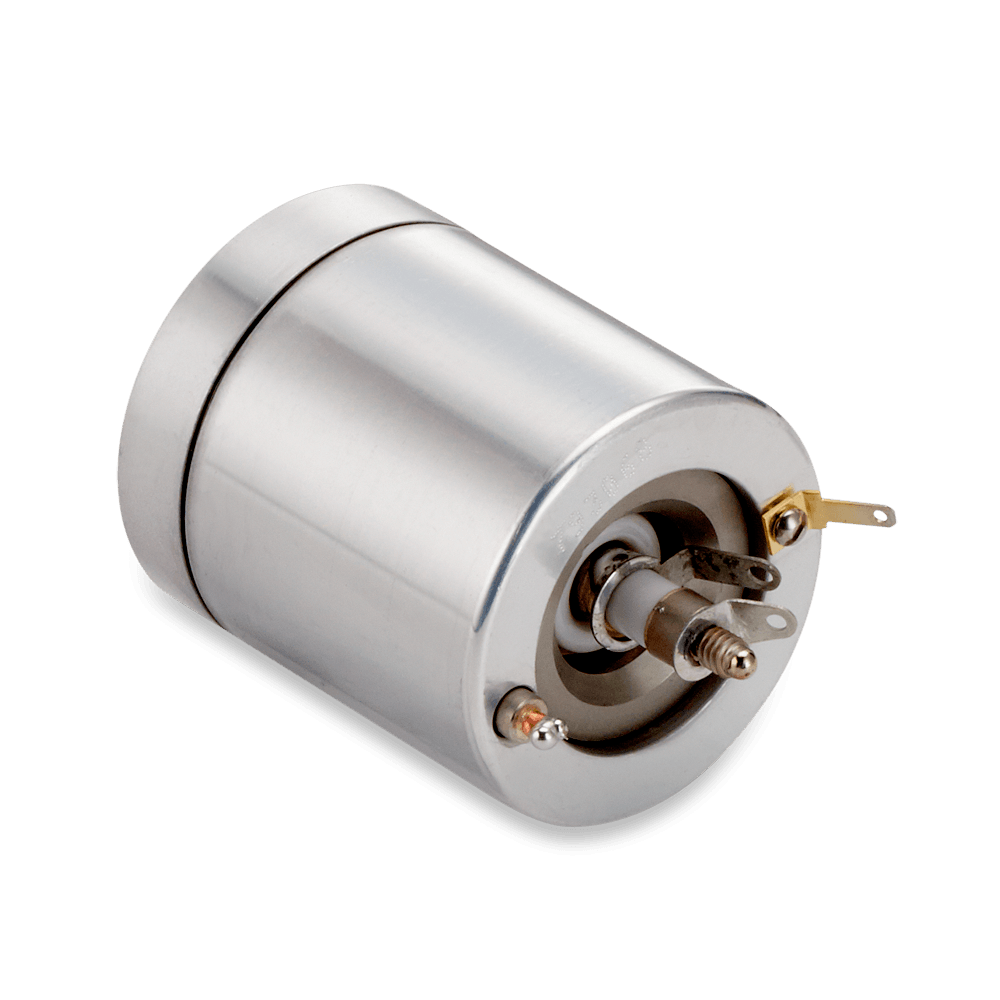

End window beta-gamma ionization chamber

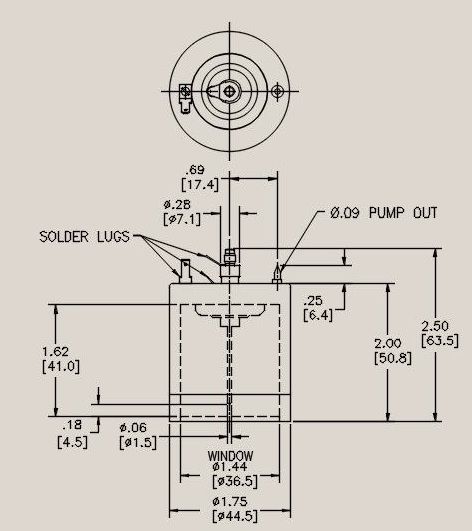

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
2.50/63.5 |
| MAXIMUM DIAMETER (INCH/MM) |
1.75/44.5 |
| EFFECTIVE LENGTH (INCH/MM) |
1.62/41.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Krypton |
| FILL PRESSURE (TORR) |
1520 |
| ANODE CONNECTOR |
Solder Lug |
| CATHODE CONNECTOR |
Solder Lug |
| GUARD CONNECTOR |
Solder Lug |
| STORAGE TEMPERATURE RANGE (°C) |
-40 to 100 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
.010/.26 |
| EFFECTIVE DIAMETER (INCH/MM) |
1.44/36.5 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
800 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
2.5E-11 |
| RESISTANCE - CATHODE TO GUARD (OHMS) |
>1.0E12 |
| RESISTANCE - SIGNAL TO GUARD (OHMS) |
>1.0E14 |
