520182

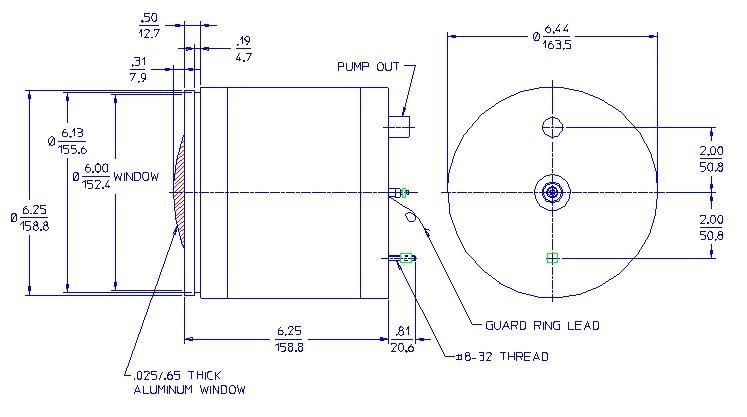

End window gamma ionization chamber
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
7.37/187.2 |
| MAXIMUM DIAMETER (INCH/MM) |
6.44/163.5 |
| EFFECTIVE LENGTH (INCH/MM) |
6.0/152.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Xenon |
| FILL PRESSURE (TORR) |
2585 |
| ANODE CONNECTOR |
#8 - 32 thread |
| CATHODE CONNECTOR |
Solder Lug |
| GUARD CONNECTOR |
Solder Lug |
| STORAGE TEMPERATURE RANGE (°C) |
-40 to 100 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Aluminum |
| THICKNESS (INCH/MM) |
0.025/0.64 |
| EFFECTIVE DIAMETER (INCH/MM) |
6.0/152.4 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
1000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
4.2E-9 |
| GAMMA SENSITIVITY (CS137) (A/R/HR) |
6.9E-9 |
| RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
| RESISTANCE - CATHODE TO GUARD (OHMS) |
>1.0E13 |
