52028
End window beta-gamma ionization chamber

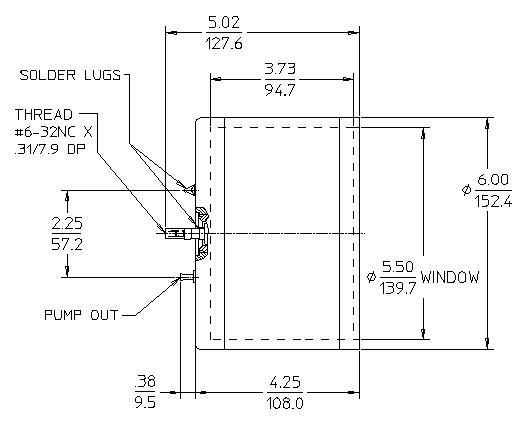

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
5.02/127.51 |
| MAXIMUM DIAMETER (INCH/MM) |
6.0/152.4 |
| EFFECTIVE LENGTH (INCH/MM) |
3.73/94.74 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Krypton |
| FILL PRESSURE (TORR) |
988 |
| ANODE CONNECTOR |
Threaded Pin |
| CATHODE CONNECTOR |
Solder Pin |
| GUARD CONNECTOR |
Solder Pin |
| STORAGE TEMPERATURE RANGE (°C) |
-20 to +75 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Aluminum |
| THICKNESS (INCH/MM) |
0.008/0.2 |
| EFFECTIVE DIAMETER (INCH/MM) |
5.5/139.7 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
1000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
4.8E-10 |
| RESISTANCE - SIGNAL ELECTRODE TO CATHODE (OHMS) |
>1.0E14 |
| RESISTANCE - HV ELECTRODE TO CATHODE (OHMS) |
>1.0E12 |
