52038
End window beta-gamma ionization chamber

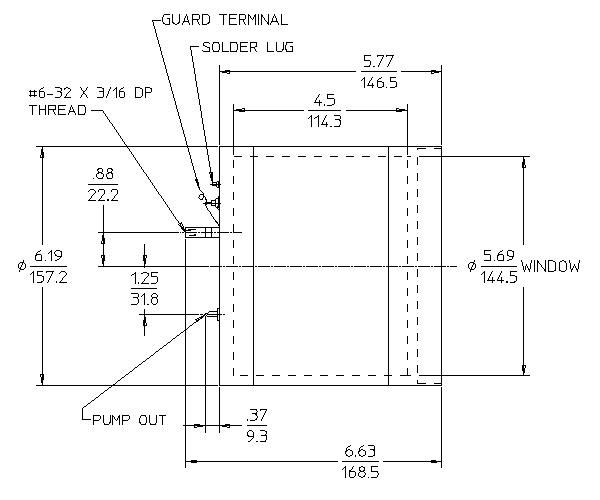

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
6.63/168.4 |
| MAXIMUM DIAMETER (INCH/MM) |
6.19/157.23 |
| EFFECTIVE LENGTH (INCH/MM) |
4.5/114.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Xenon |
| FILL PRESSURE (TORR) |
2280 |
| ANODE CONNECTOR |
Threaded Pin |
| CATHODE CONNECTOR |
Solder Pin |
| GUARD CONNECTOR |
Flying Lead |
| STORAGE TEMPERATURE RANGE (°C) |
-20 to +75 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Stainless Steel |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| EFFECTIVE DIAMETER (INCH/MM) |
5.69/144.5 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
1500 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
3.2E-9 |
| RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
| RESISTANCE - CATHODE TO GUARD (OHMS) |
>1.0E13 |
