52041
End window beta-gamma ionization chamber

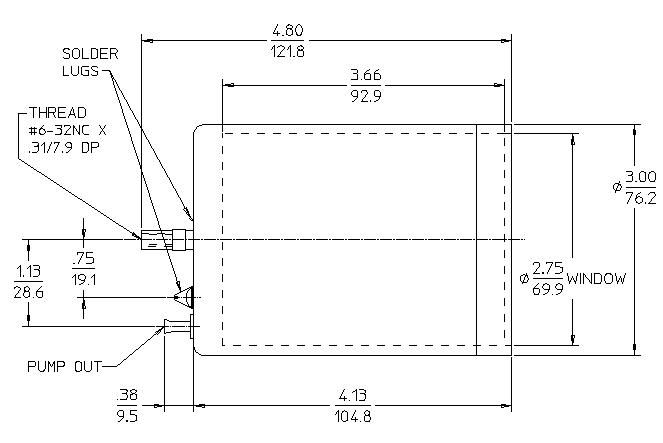

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
4.8/121.92 |
| MAXIMUM DIAMETER (INCH/MM) |
3.0/76.2 |
| EFFECTIVE LENGTH (INCH/MM) |
3.66/92.96 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Krypton |
| FILL PRESSURE (TORR) |
1140 |
| ANODE CONNECTOR |
Threaded Pin |
| CATHODE CONNECTOR |
Solder Pin |
| GUARD CONNECTOR |
Solder Pin |
| STORAGE TEMPERATURE RANGE (°C) |
-20 to +75 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Aluminum |
| THICKNESS (INCH/MM) |
.005/.127 |
| EFFECTIVE DIAMETER (INCH/MM) |
2.75/69.9 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
1500 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
1.3E-10 |
| RESISTANCE - SIGNAL ELECTRODE TO CATHODE (OHMS) |
>1.0E14 |
| RESISTANCE - HV ELECTRODE TO CATHODE (OHMS) |
>1.0E12 |
