52088
End window gamma ionization chamber

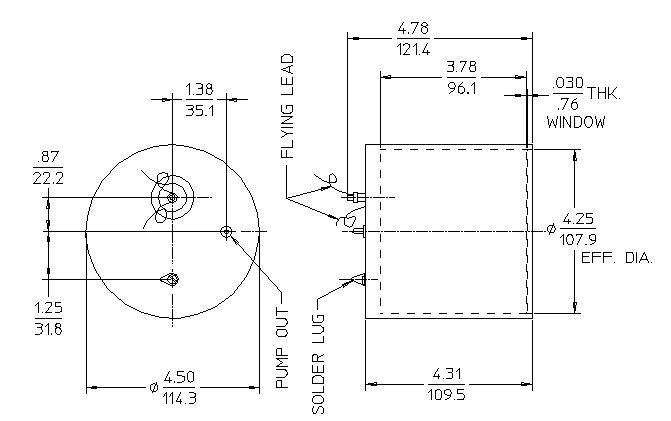

GENERAL SPECIFICATIONS
MAXIMUM LENGTH (INCH/MM) |
4.78/121.4 |
MAXIMUM DIAMETER (INCH/MM) |
4.50/114.3 |
EFFECTIVE LENGTH (INCH/MM) |
3.78/96.1 |
CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
FILL GAS |
Xenon |
FILL PRESSURE (TORR) |
1850 |
ANODE CONNECTOR |
Threaded Pin |
CATHODE CONNECTOR |
Solder Pin |
GUARD CONNECTOR |
Solder Pin |
STORAGE TEMPERATURE RANGE (°C) |
-40 to +100 |
MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
MATERIAL |
Aluminum |
THICKNESS (INCH/MM) |
0.03/0.76 |
EFFECTIVE DIAMETER (INCH/MM) |
4.25/107.9 |
OPERATING CHARACTERISTICS
RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
OPERATING TEMPERATURE RANGE °C |
25 to 85 |
MAXIMUM OPERATING VOLTAGE (VOLTS) |
800 |
GAMMA SENSITIVITY (A/R/HR - Cs-137) |
1.0E-9 |
RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
RESISTANCE - CATHODE TO GUARD (OHMS) |
>1.0E12 |
