52102
Gamma ionization chamber

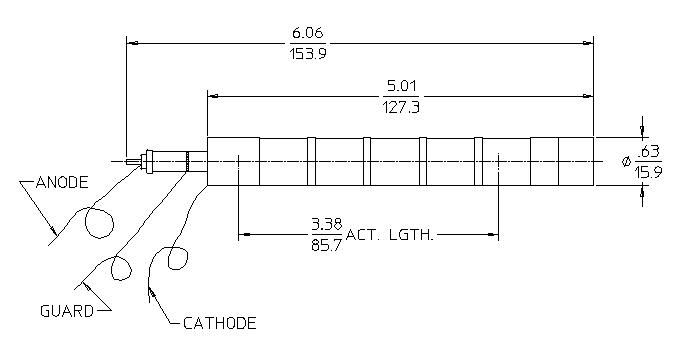

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.1/154.9 |
| MAXIMUM DIAMETER (INCH/MM) |
0.63/16.0 |
| EFFECTIVE LENGTH (INCH/MM) |
3.38/85.9 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| FILL GAS |
Propane |
| FILL PRESSURE (TORR) |
585 |
| EFFECTIVE VOLUME (CM³) |
17.0 |
| OUTER CASING MATERIAL |
N/A |
| ANODE CONNECTOR |
Flying Lead |
| CATHODE CONNECTOR |
Flying Lead |
| GUARD CONNECTOR |
Flying Lead |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1500 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
3000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
3.5E-11 |
| GAMMA SENSITIVITY (CS137) (A/R/HR) |
1.0E-10 |
| GAMMA FLUX RANGE (R/HR) |
1.0E-3 - 1.0E3 |
| RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
| RESISTANCE - HV ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
