52103
Gamma ionization chamber
General Specifications

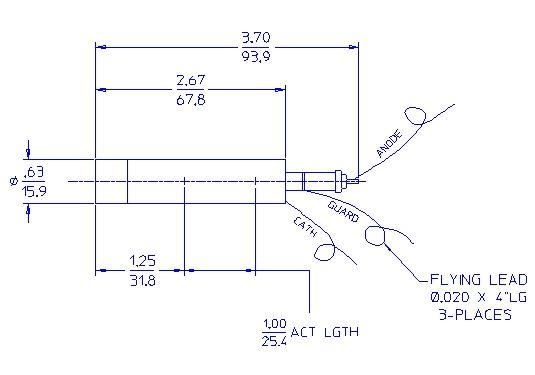

| MAXIMUM LENGTH (INCH/MM) |
3.7/93.9 |
| MAXIMUM DIAMETER (INCH/MM) |
0.63/16.0 |
| EFFECTIVE LENGTH (INCH/MM) |
1.0/25.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| FILL GAS |
Xenon |
| FILL PRESSURE (TORR) |
760 |
| EFFECTIVE VOLUME (CM³) |
4.8 |
| OUTER CASING MATERIAL |
N/A |
| ANODE CONNECTOR |
Flying Lead |
| CATHODE CONNECTOR |
Flying Lead |
| GUARD CONNECTOR |
Flying Lead |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
800 |
| GAMMA SENSITIVITY (CS137) (A/R/HR) |
1.4E-11 |
| RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
| RESISTANCE - HV ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
