50413
Neutron sensitive ionization chamber

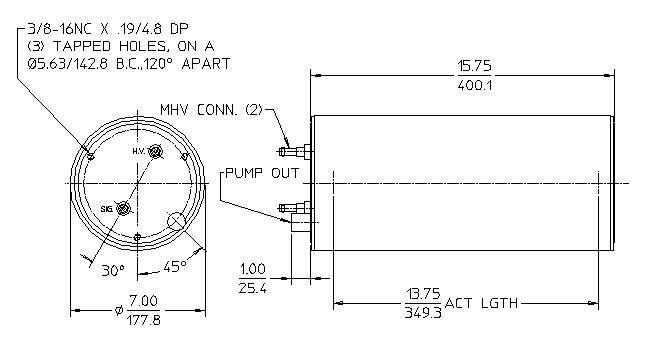

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
17.25/438.1 |
| MAXIMUM DIAMETER (INCH/MM) |
7.0/177.8 |
| GAS FILLING |
Hydrogen |
| EFFECTIVE LENGTH (INCH/MM) |
13.85/349.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL PRESSURE (TORR) |
13680 |
| EFFECTIVE VOLUME (CM³) |
5200.0 |
| OUTER CASING MATERIAL |
Stainless Steel |
| ANODE CONNECTOR |
MHV |
| CATHODE CONNECTOR |
MHV |
| GUARD CONNECTOR |
MHV |
Operating Characteristics
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| NEUTRON SENSITIVITY (AMPS/NV) |
3.5E-14 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
1.2E-9 |
| RESISTANCE - HV ELECTRODE TO SHELL (OHMS) |
>1.0E9 |
| RESISTANCE - SIGNAL ELECTRODE TO SHELL (OHMS) |
>1.0E12 |
