20012

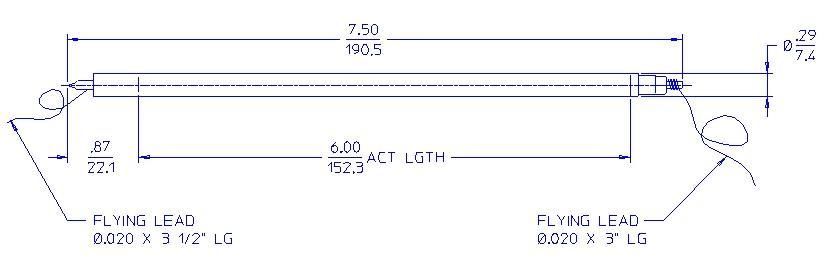

Cylindrical BF3 Neutron Detector
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
7.50/190.5 |
| MAXIMUM DIAMETER (INCH/MM) |
0.29/7.4 |
| GAS FILLING |
BF3 |
| EFFECTIVE LENGTH (INCH/MM) |
6.0/152.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.25/6.35 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +200 |
| GAS PRESSURE (TORR) at 21°C |
400 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
700 - 950 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
2 |
| WEIGHT (GRAMS) |
75 |
| CAPACITANCE (PF) |
4 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
0.5 |
