20127
Cylindrical bf3 neutron detector
GENERAL SPECIFICATIONS
| GAS PRESSURE (TORR) at 21°C |
600 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |

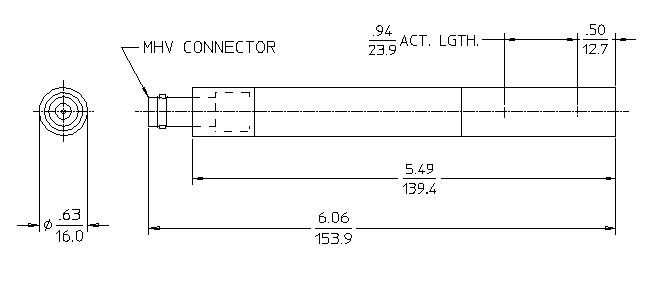

| MAXIMUM LENGTH (INCH/MM) |
6.06/153.9 |
| EFFECTIVE LENGTH (INCH/MM) |
0.94/23.88 |
| MAXIMUM DIAMETER (INCH/MM) |
0.63/16.0 |
| EFFECTIVE DIAMETER (INCH/MM) |
0.61/15.49 |
| CONNECTOR |
MHV |
| EFFECTIVE VOLUME (CM³) |
4.5 |
| OPERATING TEMPERATURE RANGE °C |
-40 to +80 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1150 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1050 - 1300 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| MAXIMUM RESOLUTION (% FWHM) |
25 |
| WEIGHT (GRAMS) |
125 |
| TUBE CAPACITANCE (PF) |
4 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
0.3 |
