20132

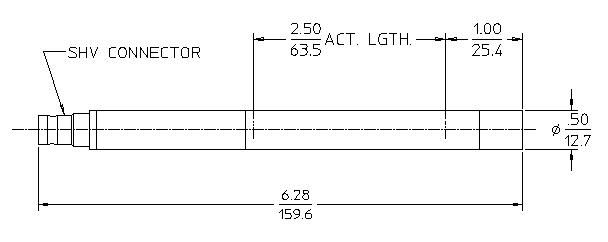

Cylindrical bf3 neutron detector
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
6.28/159.6 |
| MAXIMUM DIAMETER (INCH/MM) |
0.5/12.7 |
| EFFECTIVE LENGTH (INCH/MM) |
2.5/63.5 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
1100 Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.44/11.18 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +80 |
| GAS PRESSURE (TORR) at 21°C |
550 |
| EFFECTIVE VOLUME (CM³) |
6.23 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1350 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1250 - 1500 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
3 |
| WEIGHT (GRAMS) |
85 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
0.28 |
