20137
Cylindrical bf3 neutron detector

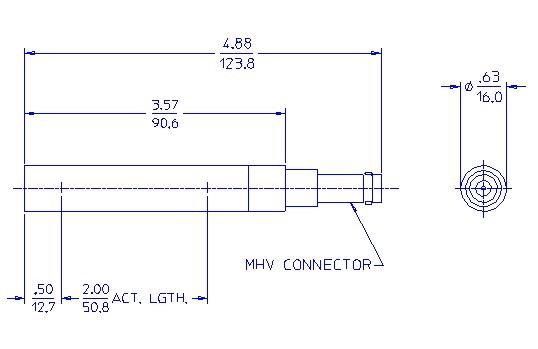

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
4.88/123.8 |
| MAXIMUM DIAMETER (INCH/MM) |
0.63/16.0 |
| EFFECTIVE LENGTH (INCH/MM) |
2.00/50.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.61/15.49 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +80 |
| GAS PRESSURE (TORR) at 21°C |
400 |
| EFFECTIVE VOLUME (CM³) |
9.5 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
900 |
| OPERATING VOLTAGE RANGE (VOLTS) |
800-1050 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
175 |
| MAXIMUM RESOLUTION (% FWHM) |
25 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
0.6 |
