202106

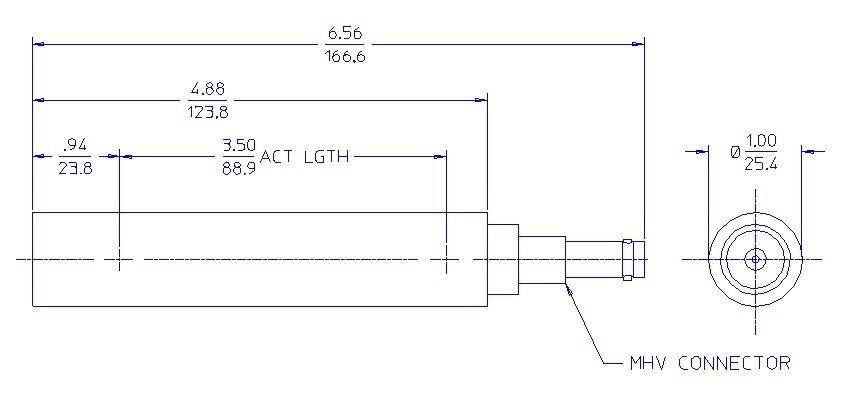

Cylindrical BF3 Neutron Detector
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
6.48/164.7 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
3.5/88.9 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.3 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
700 |
| EFFECTIVE VOLUME (CM³) |
45.0 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1850 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1750 - 2000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
5 |
| WEIGHT (GRAMS) |
100 |
| CAPACITANCE (PF) |
8 |
| MAXIMUM RESOLUTION (% FWHM) |
25 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
3.0 |
