Cylindrical bf3 neutron detector
GENERAL SPECIFICATIONS
| GAS PRESSURE (TORR) at 21°C |
400 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |

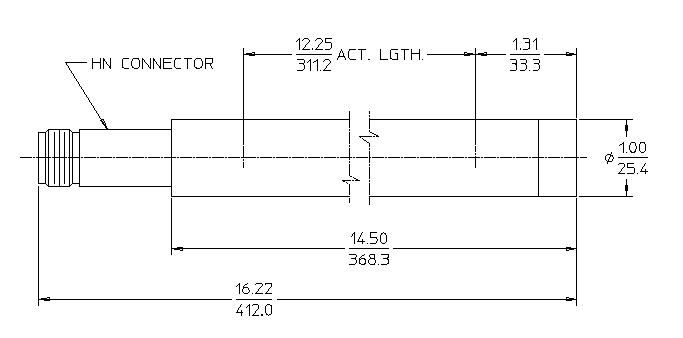

| MAXIMUM LENGTH (INCH/MM) |
16.22/411.99 |
| EFFECTIVE LENGTH (INCH/MM) |
12.25/311.15 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE DIAMETER (INCH/MM) |
0.93/23.62 |
| CONNECTOR |
HN |
| EFFECTIVE VOLUME (CM³) |
136.29 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1350 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1250 - 1500 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| MAXIMUM RESOLUTION (% FWHM) |
8 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
312 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
3.1 |
