Cylindrical bf3 neutron detector

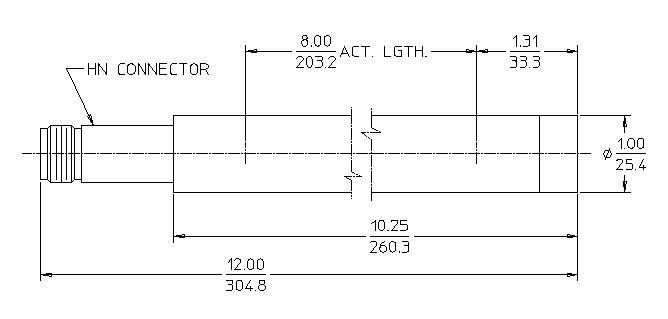

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
12.0/304.8 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
8.0/203.20 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.93/23.62 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
550 |
| EFFECTIVE VOLUME (CM³) |
89.01 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1500 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
142 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1400 - 1650 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
5.6 |
