20292
Cylindrical bf3 neutron detector

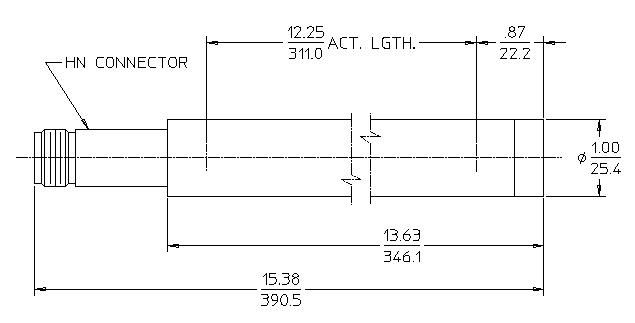

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
15.38/390.5 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
12.25/311.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.38 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
700 |
| EFFECTIVE VOLUME (CM³) |
145.23 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1850 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1750 - 2000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
250 |
| MAXIMUM RESOLUTION (% FWHM) |
15 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
11.3 |
