20338

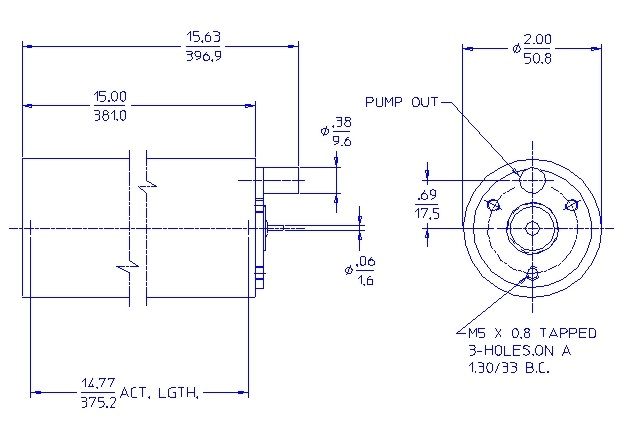

Cylindrical Bf-3 neutron detector
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
15.63/396.9 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
14.77/375.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.93/49.02 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
350 |
| EFFECTIVE VOLUME (CM³) |
707 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1400 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1300-1550 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
800 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
N/A |
