20357

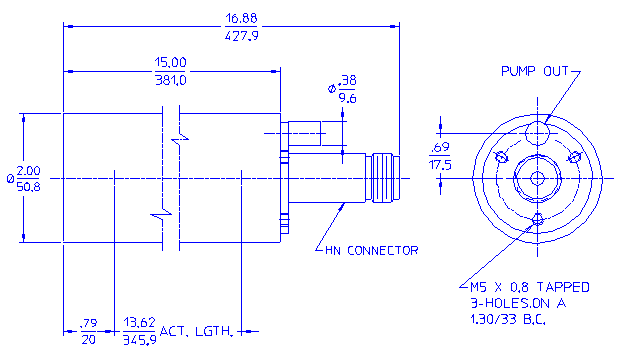

Cylindrical BF3 Neutron Detector
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
16.88/427.9 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
13.62/345.9 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.96/49.78 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
400 |
| EFFECTIVE VOLUME (CM³) |
730 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1400-2000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
2 |
| WEIGHT (GRAMS) |
600 |
| CAPACITANCE (PF) |
5 |
| MAXIMUM RESOLUTION (% FWHM) |
25 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
33.6 |
