2061
Cylindrical BF3 Neutron Detector

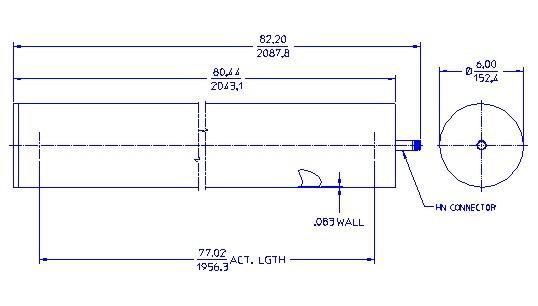

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
82.20/2087.8 |
| MAXIMUM DIAMETER (INCH/MM) |
6.0/152.4 |
| EFFECTIVE LENGTH (INCH/MM) |
77.02/1956.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
5.87/149.1 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
200 |
| EFFECTIVE VOLUME (CM³) |
34,107 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1200 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1000-2000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| WEIGHT (GRAMS) |
8000 |
| CAPACITANCE (PF) |
17 |
| MAXIMUM RESOLUTION (% FWHM) |
30 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
TBD |
