212
Ceramic end window
GENERAL SPECIFICATIONS
| GAS PRESSURE (TORR) at 21°C |
760 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |

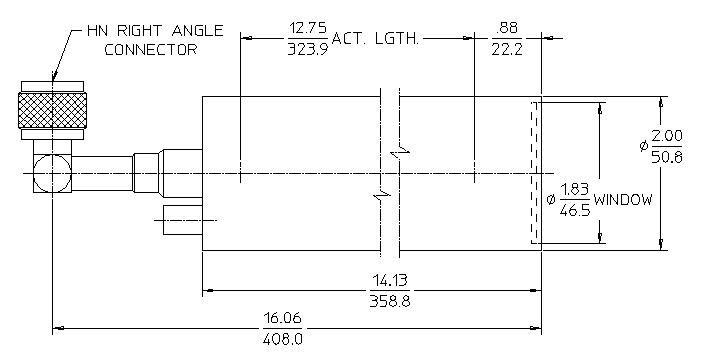

| MAXIMUM LENGTH (INCH/MM) |
16.0/406.40 |
| EFFECTIVE LENGTH (INCH/MM) |
12.75/323.85 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE DIAMETER (INCH/MM) |
1.87/47.5 |
| CONNECTOR |
RT Angle HN |
| EFFECTIVE VOLUME (CM³) |
573.54 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
WINDOW SPECIFICATIONS
| MATERIAL |
Al203 |
| THICKNESS (INCH/MM) |
1.93 / 49.0 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
2200 |
| OPERATING VOLTAGE RANGE (VOLTS) |
2100 - 2300 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| MAXIMUM RESOLUTION (% FWHM) |
40 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
500 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
25.1 |
