23211
Boron lined neutron proportional counter
General Specifications

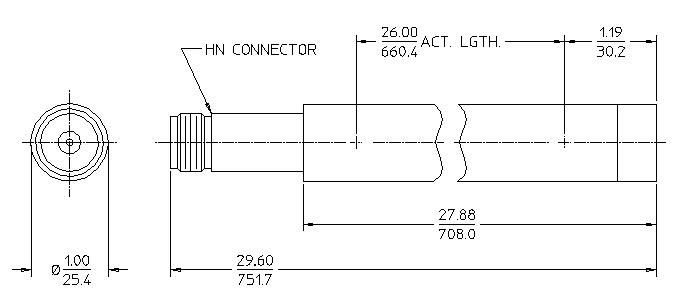

| MAXIMUM LENGTH (INCH/MM) |
29.6/751.8 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| GAS FILLING |
Argon |
| EFFECTIVE LENGTH (INCH/MM) |
26.0/660.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.93/23.6 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
200 |
| EFFECTIVE VOLUME (CM³) |
289.3 |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
700 - 950 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
30 |
| TUBE CAPACITANCE (PF) |
4 |
| THERMAL NEUTRON SENSITIVITY (CPS/NV) |
10.0 |
| FLUX RANGE |
1.0E-1 - 1.0E4 |
Neutron Sensitive Material
| COATING MATERIAL |
B10 |
| ENRICHMENT (%) |
96 |
| COATED THICKNESS (MG/CM²) |
0.5 |
| COATED AREA (CM²) |
180.0 |
