2513

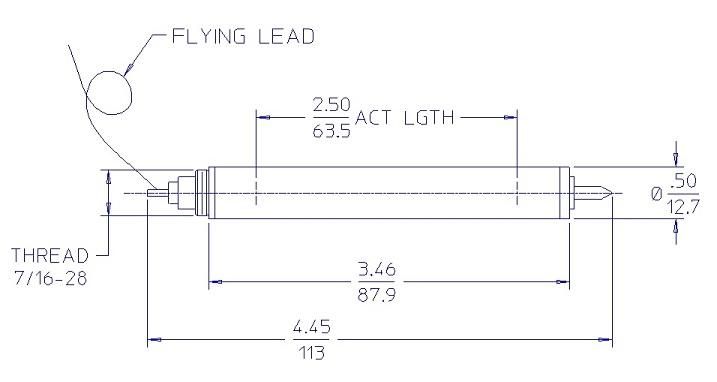

Cylindrical he3 neutron detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
4.38/111.25 |
| MAXIMUM DIAMETER (INCH/MM) |
0.5/12.7 |
| EFFECTIVE LENGTH (INCH/MM) |
2.5/63.5 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.4/10.16 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
5.15 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1000 |
| OPERATING VOLTAGE RANGE (VOLTS) |
900 - 1250 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
41 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
1.9 |
