25139
Cylindrical he3 neutron detector
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
13 |

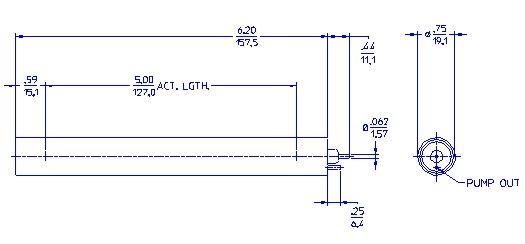

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.64/168.6 |
| MAXIMUM DIAMETER (INCH/MM) |
0.75/19.05 |
| EFFECTIVE LENGTH (INCH/MM) |
5.0/127.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.71/18.03 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-25 to +150 |
| GAS PRESSURE (TORR) at 21°C |
2666 |
| EFFECTIVE VOLUME (CM³) |
32.42 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
650 |
| OPERATING VOLTAGE RANGE (VOLTS) |
550 - 800 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
3 |
| WEIGHT (GRAMS) |
100 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
