25143
Cylindrical he3 neutron detector

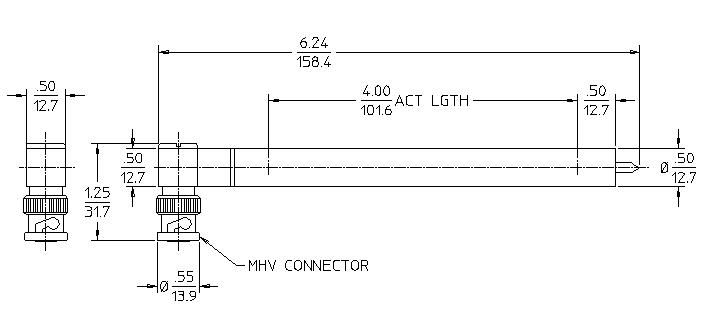

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.24/158.4 |
| MAXIMUM DIAMETER (INCH/MM) |
0.50/12.7 |
| EFFECTIVE LENGTH (INCH/MM) |
4.0/101.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.45/11.4 |
| CONNECTOR |
MHV |
| GAS PRESSURE (TORR) at 21°C |
15200 |
| EFFECTIVE VOLUME (CM³) |
10.42 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1400 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1300-1550 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
8.1 |
