25183
Cylindrical he3 neutron detector

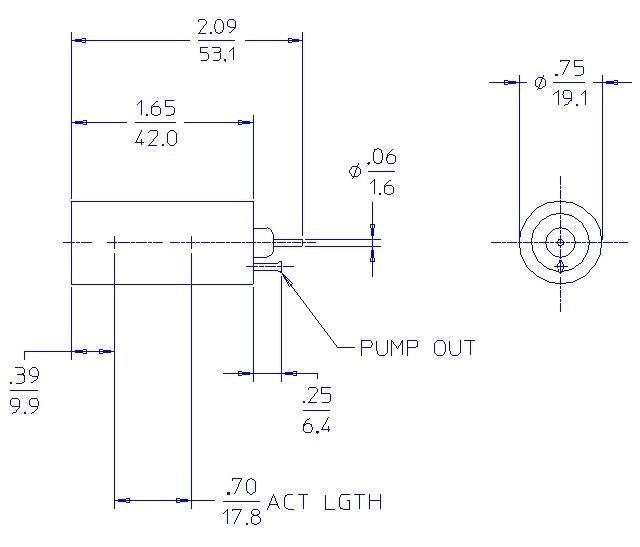

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
2.09/53.1 |
| MAXIMUM DIAMETER (INCH/MM) |
0.75/19.1 |
| EFFECTIVE LENGTH (INCH/MM) |
0.70/17.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.71/18.0 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +80 |
| GAS PRESSURE (TORR) at 21°C |
7600 |
| EFFECTIVE VOLUME (CM³) |
4.5 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1080 |
| OPERATING VOLTAGE RANGE (VOLTS) |
980-1200 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
85 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
2.5 |
