252108
Cylindrical he3 neutron detector

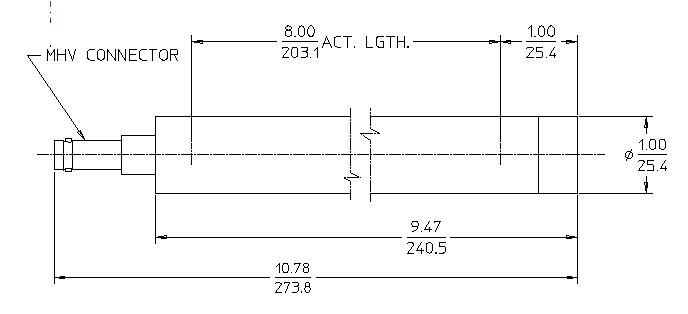

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
11.25/285.75 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
8.0/203.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.93/23.62 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
7600 |
| EFFECTIVE VOLUME (CM³) |
89.01 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1950 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1850 - 2100 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
142 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
34.0 |
