252152
He-3 Neutron Detector

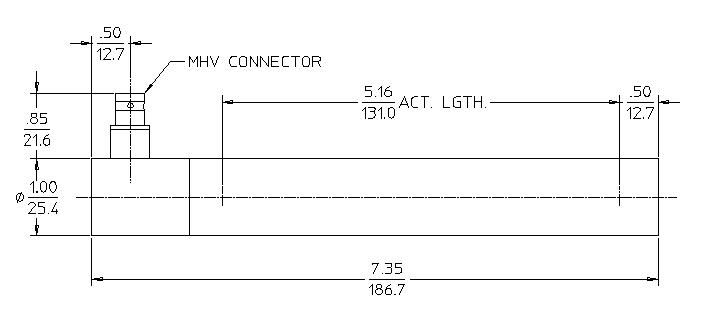

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.35/186.7 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
5.16/131.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.38 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-25 to +150 |
| GAS PRESSURE (TORR) at 21°C |
3800 |
| EFFECTIVE VOLUME (CM³) |
61.17 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1000 |
| OPERATING VOLTAGE RANGE (VOLTS) |
800 - 1200 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
200 |
| MAXIMUM RESOLUTION (% FWHM) |
7 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
22.0 |
