252262
Cylindrical he3 neutron detector

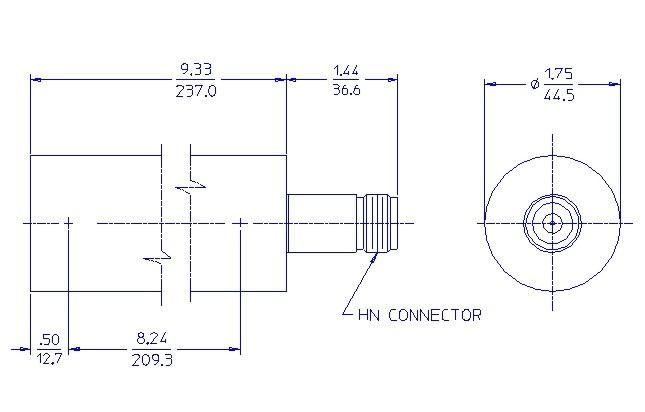

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
10.77/273.5 |
| MAXIMUM DIAMETER (INCH/MM) |
1.75/44.5 |
| EFFECTIVE LENGTH (INCH/MM) |
8.24/209.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.68/42.67 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +150 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
297 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
950 |
| OPERATING VOLTAGE RANGE (VOLTS) |
850 - 1100 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
10 |
| TUBE CAPACITANCE (PF) |
8.5 |
| WEIGHT (GRAMS) |
200 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
115 |
