25281
Cylindrical he3 neutron detector

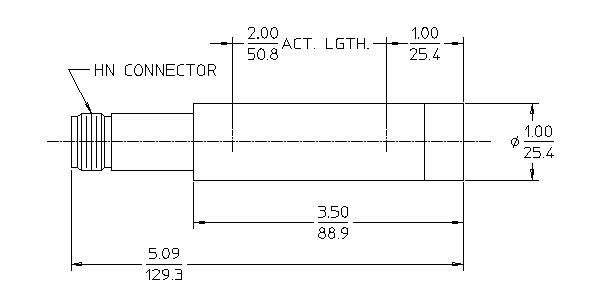

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
5.09/129.29 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
2.0/50.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.94/23.88 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4590.4 |
| EFFECTIVE VOLUME (CM³) |
22.73 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1400 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1300-1550 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
9.1 |
