25285
Cylindrical he3 neutron detector

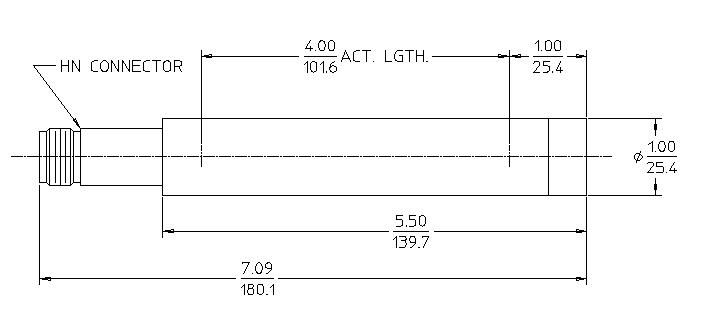

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.09/180.09 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
4.0/101.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.94/23.88 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
45.5 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1250 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1100 - 1400 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
142 |
| MAXIMUM RESOLUTION (% FWHM) |
8 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
14.0 |
