25291
Cylindrical He3 neutron detector

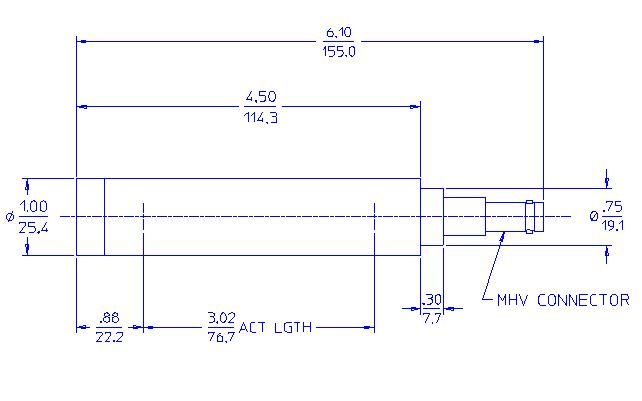

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.10/154.94 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
3.02/76.7 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.38 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
3800 |
| EFFECTIVE VOLUME (CM³) |
32.6 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1300 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1200 - 1450 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
150 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
13 |
