2531

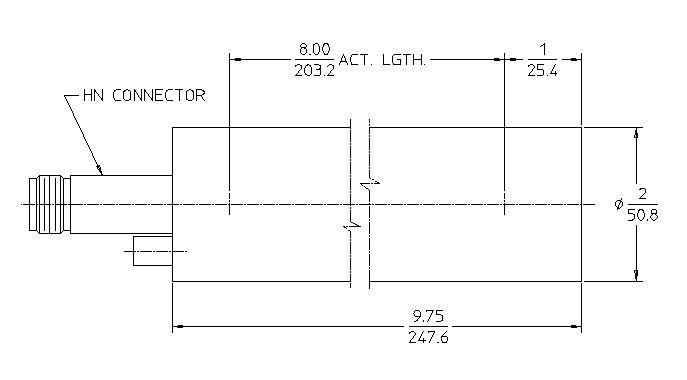

Cylindrical he3 neutron detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
11.63/295.4 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
8.0/203.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.88/47.75 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4560 |
| EFFECTIVE VOLUME (CM³) |
363.73 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1950 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1700 - 2200 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
2 |
| TUBE CAPACITANCE (PF) |
8.5 |
| WEIGHT (GRAMS) |
510 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
83.0 |
