253120
Cylindrical he3 neutron detector

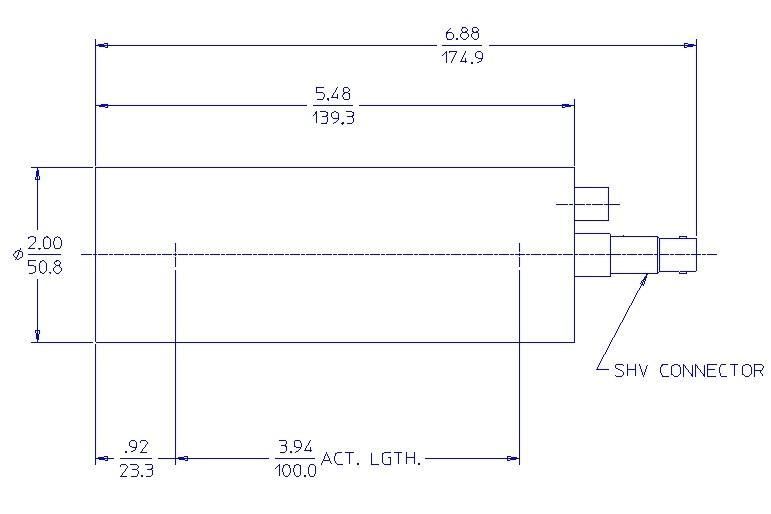

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.88/174.9 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
3.94/100.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
1.88/47.75 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
3787.7 |
| EFFECTIVE VOLUME (CM³) |
178 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
900 |
| OPERATING VOLTAGE RANGE (VOLTS) |
800-1050 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
175 |
| MAXIMUM RESOLUTION (% FWHM) |
15 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
