253151

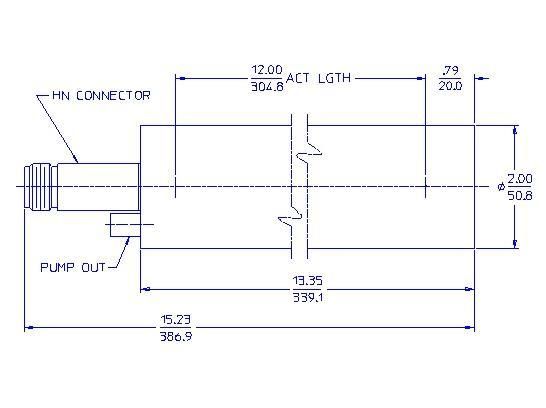

Cylindrical he3 neutron detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
15.23/386.9 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
12.0/304.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.96/49.78 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
2052 |
| EFFECTIVE VOLUME (CM³) |
593 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
950 |
| OPERATING VOLTAGE RANGE (VOLTS) |
850-1100 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
5 |
| WEIGHT (GRAMS) |
220 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
107.0 |
