24211
Cylindrical Bf-3 Neutron Detector

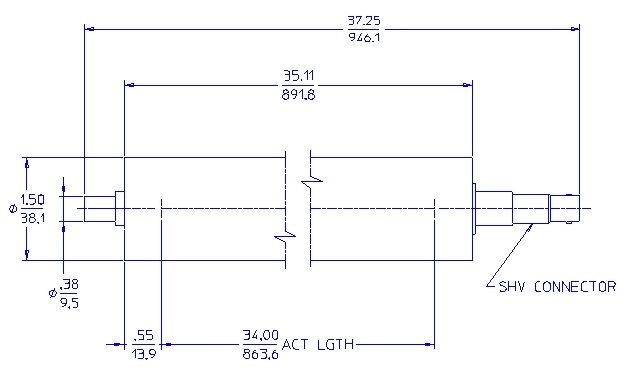

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
37.25/946.1 |
| MAXIMUM DIAMETER (INCH/MM) |
1.50/38.1 |
| EFFECTIVE LENGTH (INCH/MM) |
34.00/863.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.46/37.08 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +100 |
| GAS PRESSURE (TORR) at 21°C |
450 |
| EFFECTIVE VOLUME (CM³) |
935 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1500 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1400 - 1650 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
8.5 |
| WEIGHT (GRAMS) |
N/A |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
