2043
Cylindrical Bf-3 Neutron Detector

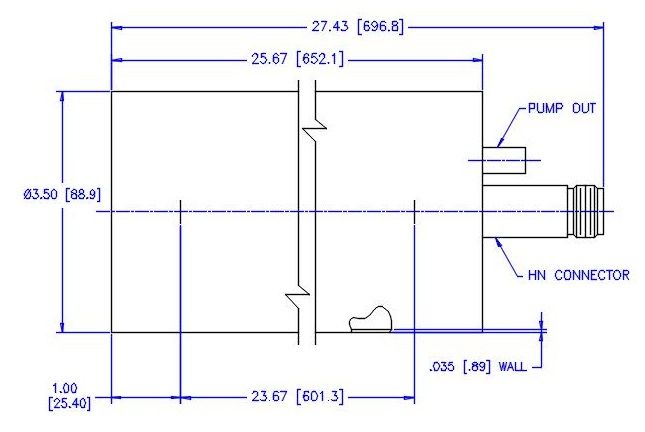

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
27.43/696.8 |
| MAXIMUM DIAMETER (INCH/MM) |
3.5/89.0 |
| EFFECTIVE LENGTH (INCH/MM) |
23.67/601.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
3.43/87.12 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-40 to +100 |
| GAS PRESSURE (TORR) at 21°C |
700 |
| EFFECTIVE VOLUME (CM³) |
227 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
2300 |
| OPERATING VOLTAGE RANGE (VOLTS) |
2000-2500 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
N/A |
| WEIGHT (GRAMS) |
N/A |
| MAXIMUM RESOLUTION (% FWHM) |
N/A |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
