254
End window he3 neutron detector

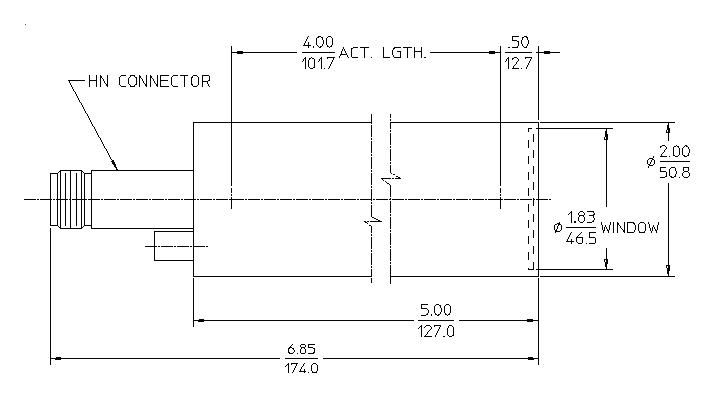

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.85/173.99 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
4.0/101.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.88/47.75 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4560 |
| EFFECTIVE VOLUME (CM³) |
181.86 |
Window Specifications
| MATERIAL |
Alumina Oxide |
| THICKNESS (INCH/MM) |
0.062/1.57 |
| DIAMETER (INCH/MM) |
1.83/46.48 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
2000 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1800 - 2200 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
2 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
396 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
42.0 |
