Quadrilateral he3 detector

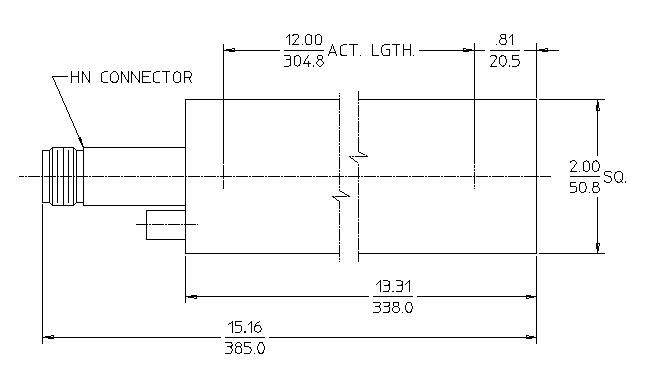

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
15.16/385.06 |
| EFFECTIVE LENGTH (INCH/MM) |
12.0/304.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM WIDTH (INCH/MM) |
2.0/50.8 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
602.33 |
| EFFECTIVE WIDTH (INCH/MM) |
1.75/44.45 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1300 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1150 - 1500 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
567 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
147.5 |
