2633
Quadrilateral he3 neutron detector

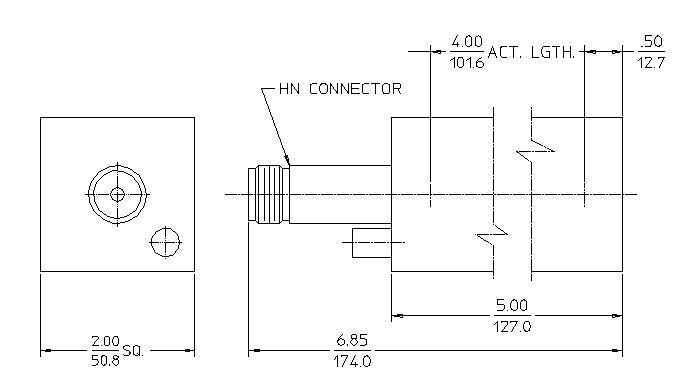

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.85/173.99 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0 x 2.0/50.8 x 50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
4.0/101.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
1.75 x 1.75/44.45 x 44.45 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
200.77 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1300 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1200 - 1450 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
35 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
49.21 |
