270

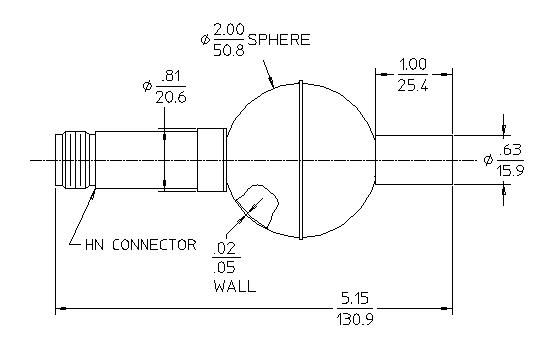

Spherical proton recoil neutron detector
General Specifications
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| GAS FILLING |
Hydrogen |
| EFFECTIVE LENGTH (INCH/MM) |
1.96/49.78 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OVERALL LENGTH (INCH/MM) |
4.89/124.1 |
| GAS PRESSURE (TORR) at 21°C |
760 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1500 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1400 - 3000 |
| TUBE CAPACITANCE (PF) |
4 |
| TYPICAL RESOLUTION (% FWHM) |
3 |
