270114
Spherical he3 neutron detector

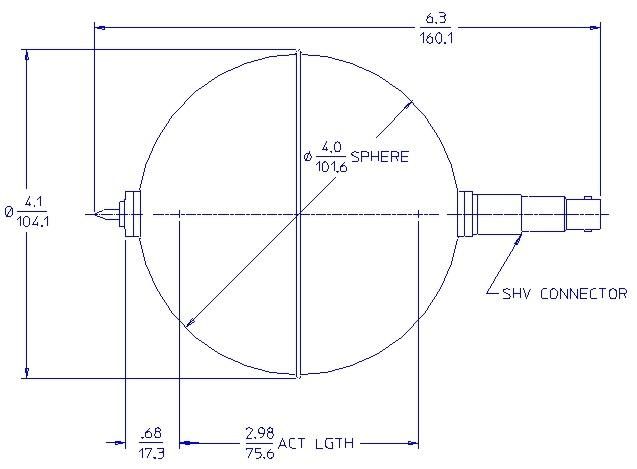

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
6.3/160.1 |
| MAXIMUM DIAMETER (INCH/MM) |
4.1/104.1 |
| EFFECTIVE LENGTH (INCH/MM) |
2.98/75.69 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
4.0/101.6 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4985.6 |
| EFFECTIVE VOLUME (CM³) |
549 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1880 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1780 - 2050 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
10 |
| WEIGHT (GRAMS) |
500 |
| MAXIMUM RESOLUTION (% FWHM) |
20 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
