275

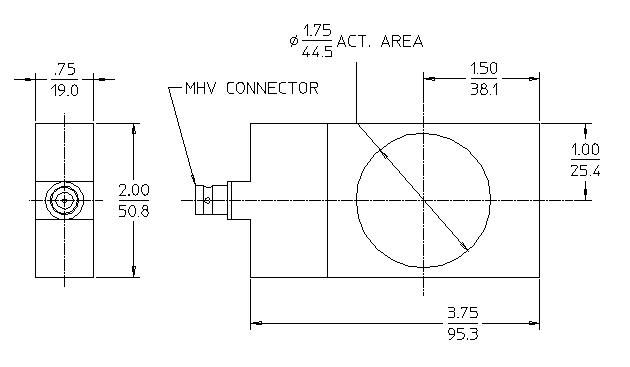

Quadrilateral he3 detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
4.5/114.3 |
| EFFECTIVE LENGTH (INCH/MM) |
1.75/44.45 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| EFFECTIVE DEPTH (INCH/MM) |
0.5/12.7 |
| MAXIMUM WIDTH (INCH/MM) |
2.0/50.8 |
| MAXIMUM DEPTH (INCH/MM) |
0.75/19.0 |
| GAS PRESSURE (TORR) at 21°C |
7600 |
| EFFECTIVE VOLUME (CM³) |
29.50 |
| EFFECTIVE WIDTH (INCH/MM) |
1.75/44.45 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1850 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1600 - 2000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
226 |
| MAXIMUM RESOLUTION (% FWHM) |
15 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
18.1 |
